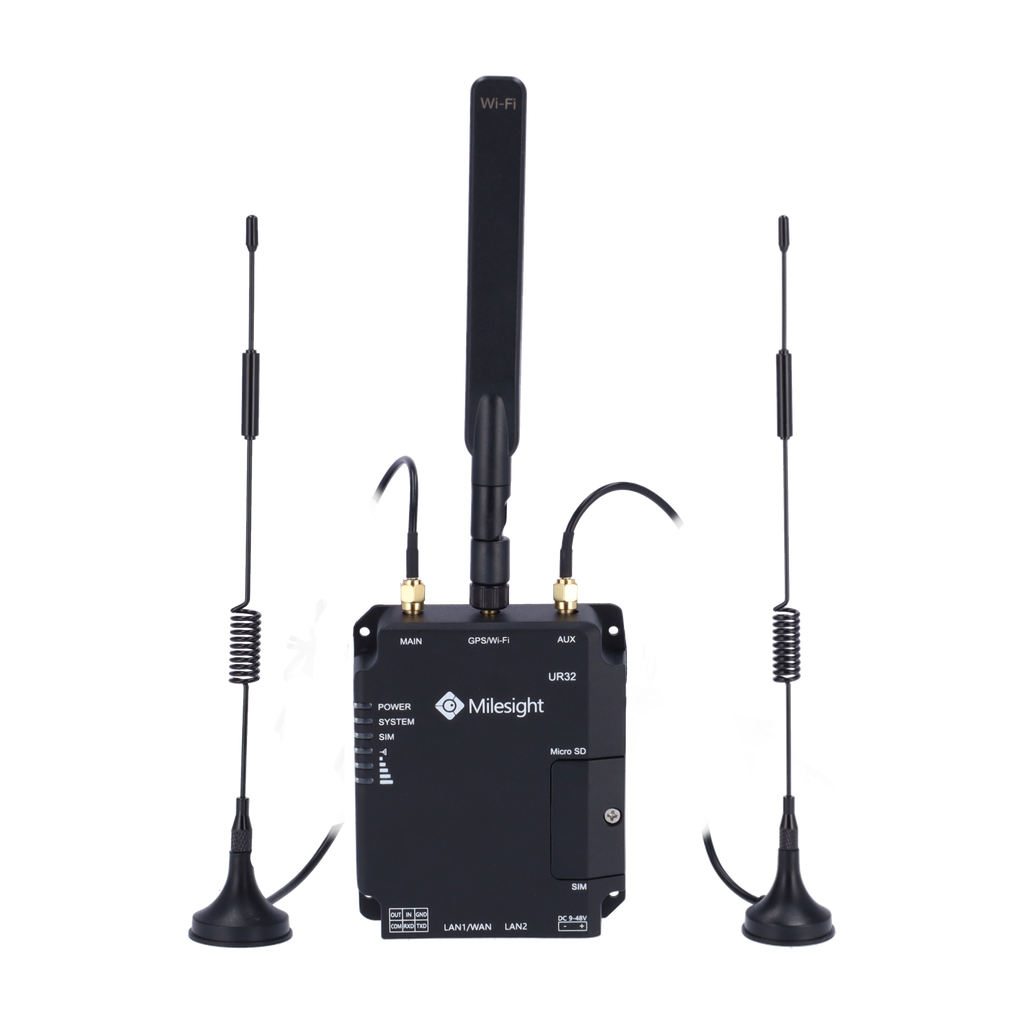

(MS-UR32-L0GEU-W-485) Routeur industriel Milesight 4G LTE Cat 4 - Une connectivité fiable grâce à deux emplacements SIM - Wi-Fi 802.11b/g/n à 2.4 GHz de 150 Mbps - VPN avancé: IPSec, OpenVPN et L2TP/PPTP - 2 ports Ethernet 10/100 - Ports industriels RS485
| Marca | Milesight |
| Instalación | Escritorio, Pared o Carril DIN |
| CPU | ARM Cortex-A7, 528 MHz |
| RAM | 128 MB DDR3 |
| Almacenamiento Flash | 128 MB |
| Almacenamiento Extendible | 1 x Micro SD Slot |
| Sistema Operativo | Basado en OpenWrt Linux OS |
| Red Móvil | 4G LTE (CAT 4), WCDMA, GSM |
| Tx Power LTE | Class 3 (23 dBm +/- 2 dB) |
| Ranuras SIM | 2 x SIM Slot (Mini SIM-2FF) |
| Puertos Ethernet | 2 x 10/100 Mbps |
| Configuración Ethernet | 1 x WAN + 1 x LAN o 2 x LAN |
| Aislamiento Ethernet | 1.5 kV RMS |
| Wi-Fi Estándar | IEEE 802.11 b/g/n, 2.4GHz |
| Usuarios Wi-Fi | Hasta 15 conexiones simultáneas |
| Seguridad Wi-Fi | WPA/WPA2-PSK/EAP, WEP/TKIP/AES |
| GNSS | GPS, GLONASS, BDS, Galileo, QZSS |
| Puerto Serie | 1 x RS485 |
| Baud Rate Serie | 300 bps a 230,400 bps |
| DI/DO | 1 x DI + 1 x DO (Aislamiento Galvánico) |
| VPN | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard, ZeroTier |
| Firewall | SPI, ACL, Port Mapping, MAC Binding, DoS/DDoS |
| Protocolos de Red | IPv4/IPv6, PPP, PPPOE, SNMP, RIP, OSPF, MQTT |
| Gestión | Web, CLI, SMS, TR069, DeviceHub |
| Watchdog | Hardware Watchdog integrado |
| Voltaje de Entrada | 9-48 VDC (48V necesario para PoE) |
| Protección Energía | Sobretensión y Polaridad Inversa |
| Consumo de Energía | Típico 1.9 W, Máx 2.4 W (Modo no PoE) |
| Protección IP | IP30 |
| Material Carcasa | Metal |
| Temperatura Trabajo | -40 °C a +70 °C |
| Temperatura Almacén | -40 °C a +85 °C |
| Humedad Relativa | 0 % a 95 % (sin condensación) |
| Dimensiones | 108 x 90 x 26 mm |
| Peso | 271 g |
| Color | Negro |
0,00 €
0,00 €
411,11 €
(Hors taxes)
